Quad Core 4K Android Dongle RKM V8 with Amlogic S905x5M quad-core, 4K signage player (Support TV USB charging)
|
Hardware
Specifications:
|
|
CPU
|
Amlogic S905X5M
Quad-core,4xCortex-A55 processor (up to
2.5 GHz)
|
|
GPU
|
Mali-G310 V2
|
|
OS
|
Android 14
|
|
RAM/ROM
|
4G RAM, 32G ROM
|
|
WIFI
|
2.4G/5G ,802.11a/b/g/n/ax
|
|
|
WIFI 6
|
|
Ethernet
|
100/1000M LAN
|
|
Bluetooth
|
Bluetooth 5.2
|
|
Expand Memory
|
T-Flash(Maximum support 32GB)
|
|
Power
|
DC 5V/2A
|
|
USB power
|
Low power consumption, can be powered via TV USB port
|
|

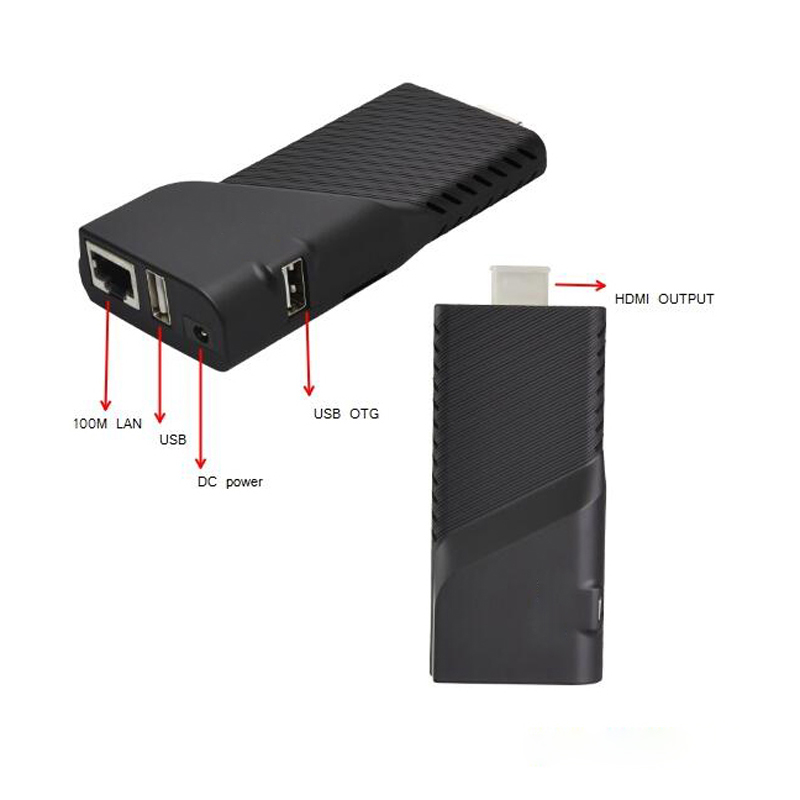

Interface:
|
|
HDMI Output
|
1*HDMI
|
|
USB
|
1*USB host, 1*USB OTG
|
|
MicroSD
|
1*Micro SD slot, Maximum support 32GB
|
|
Network
|
1*Gigabit RJ45
|
|
Power Supply
|
DC 5V/2A, Also can be powered via TV USB port
|
|
Recovery button
|
1* Restore button
|
|
Software
Performance:
|
|
Google play
|
Support downloading more than
600,000 applications from google play store.
|
|
UI
|
Default 1080P UI;
4K UI available when output resolution is set to 4K on a 4K TV.
|
|
Language
|
Support Multi-language
|
|
Remote Control
|
/
|
|
Signage Version
|
Support rotation, time on / off,
Watchdog
|
|
Media Parameter:
|
|
Video Formats &
Resolution
|
* Video decode: AV1,VP9 , H.265
(HEVC), H.264
* Max resolution: 4K@75fps 10bit
* Supports 4K decoding and playback
* HDR: HDR10, HLG
|
|
Audio formats
|
* PCM/LPCM
* MP3, AAC, WMA, FLAC, OGG
|
|
Picture Format
|
JPEG / PNG / BMP / GIF
|
|
Packing:
|
|

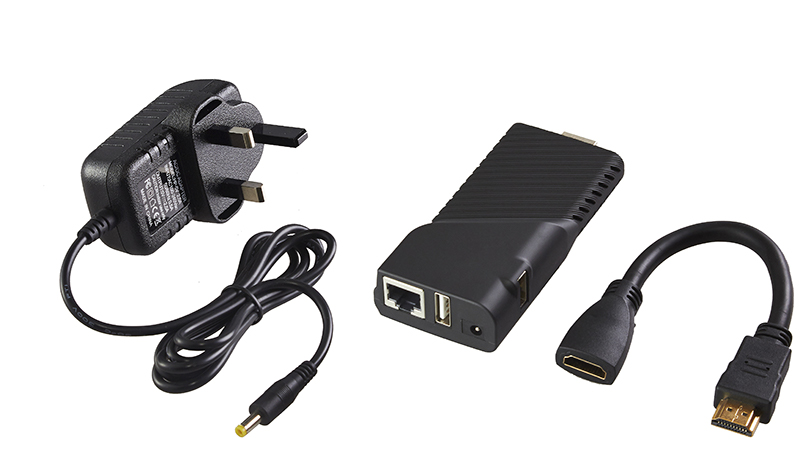

Accessories
|
HDMI cable, Power supply
|
|
Unit Size
|
110*48*22 mm
|
|
Net Weight
|
0.325 KG
|
