Quad Core 4K MINI PC V3
OS version  :  Android 7.1 or 9.0
Model  :  V3
Specifications  :
CPU  :  Rockchip RK3328
RAM  :  2G
Program  :  16G
Graphics  :  Mali-450MP2
Wifi  :  Dual band WIFI,support 802.11
Extended  :  up to 32G
IO  :  HDMI,USB,Gbit LAN,TF card port
keyoard  :  NON
Audio  :  MP3,WMA,WAV,OGG,FLAC,ALAC,APE,
Video  :  MEPG 1/2/4,H.263/H.264,RMVB,WM
Model  :  V3
Specifications  :
CPU  :  Rockchip RK3328
RAM  :  2G
Program  :  16G
Graphics  :  Mali-450MP2
Wifi  :  Dual band WIFI,support 802.11
Extended  :  up to 32G
IO  :  HDMI,USB,Gbit LAN,TF card port
keyoard  :  NON
Audio  :  MP3,WMA,WAV,OGG,FLAC,ALAC,APE,
Video  :  MEPG 1/2/4,H.263/H.264,RMVB,WM
*RKM V3 supports rotation,RTC, Time on and off,
it can be also used as signage player ,customized fw supported.
RKM V3 supports rotation, RTC, Time on and off, it can be also used as signage player ,customized fw supported.
Hardware Specifications: | |
CPU | Rockchip RK3328, Quad-core Cortex-A53 up to 1.5GHz |
GPU | Mali-450MP2 GPU,support OpenGL ES1.1/2.0 |
OS | Android7.1 or 9.0 for option |
RAM/ROM | 2G RAM, 16G ROM |
WIFI | 2.4Ghz WiFi, IEEE 802.11 b/g/n |
Ethernet | 10/100M LAN Port |
Bluetooth | Bluetooth 4.2 |
Expand Memory | MicSD card, up to 32GB |
Power | DC IN 5V/2A |
Interface: | |
HDMI Output | 1 x HDMI2.0 4K*2K@60fps display |
USB | 1 x USB2.0 Host, 1 x USB3.0 Host |
MicroSD | 1 x MicroSD card |
Network | 1 x RJ45 10/100M |
Power Supply | DC IN 5V/2A |
Software Performance: | |
Google play | Support downloading more than 600,000 applications from google play store. |
UI |
Attractive
UI design for better user experience; Original Android UI can be settled by user as well. |
Language | Support Multi-language |
3G dongle | Compatible with 3G dongle |
Protocol | Support Miracast, DLNA, Air play |
Media Parameter: | |
Audio Container | Support MP1,MP2,MP3,WMA,WAV,OGG,OGA,APE,FLAC,AAC,M4A,3GPP…etc Audio formats. |
Video Format |
Support
4K VP9 and 4K 10bits H265/H264 video decoding,up to 60fps 1080P multi-format video decoding (WMV, MPEG-1/2/4,H264, VP8) |
Picture Format | HD JPG/JPEG/BMP/GIF/PNG/TIFF |
Resolution | Support 4Kx2K & Full HD 4K*2K@60 fps video output |
Packing: | |
Accessories | HDMI cable, Power supply |
Unit Size | 110*48*22 mm |
Net Weight | 0.325KG |

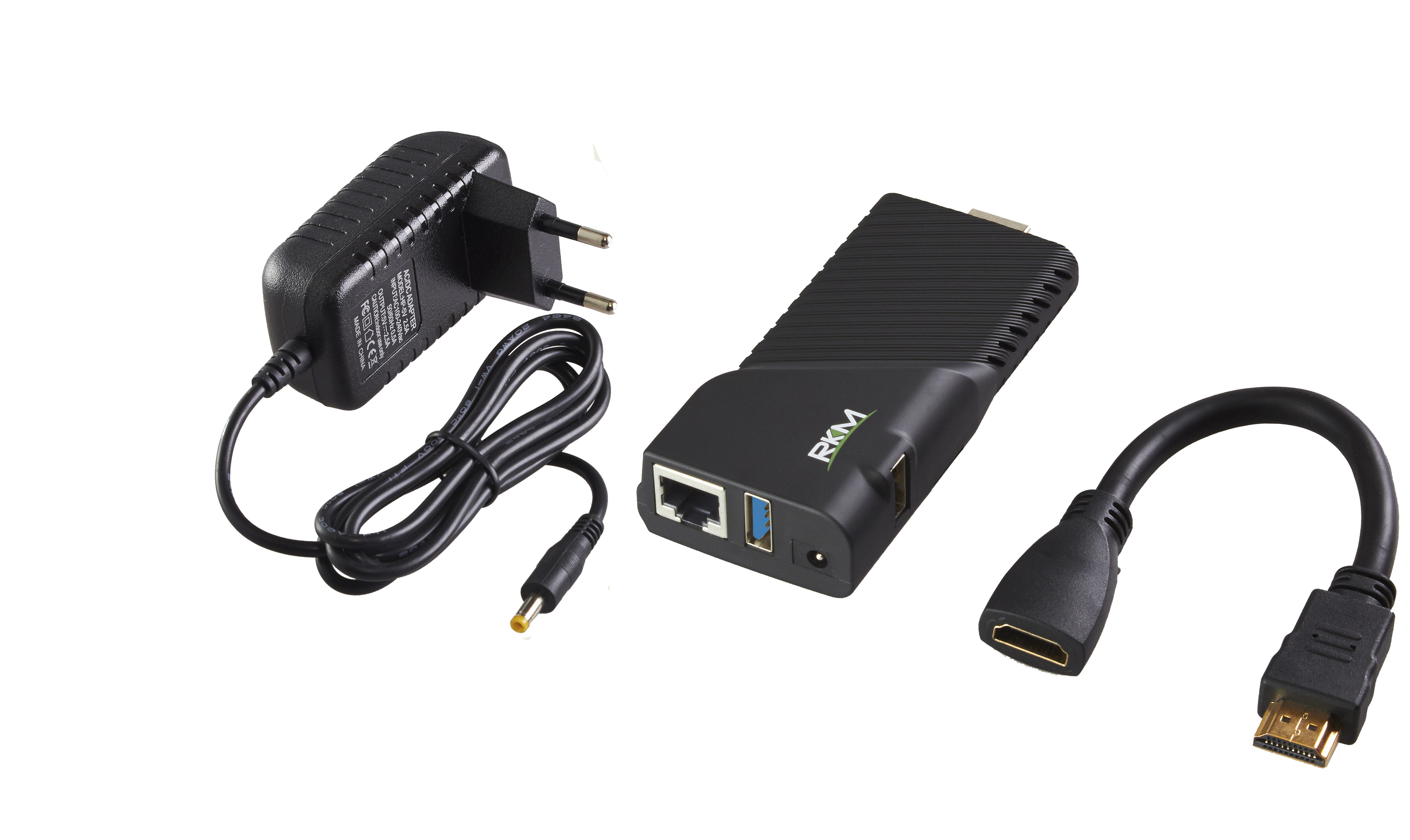

Accessories:
*HDMI Cable
*Power Supply
*e-Manual
